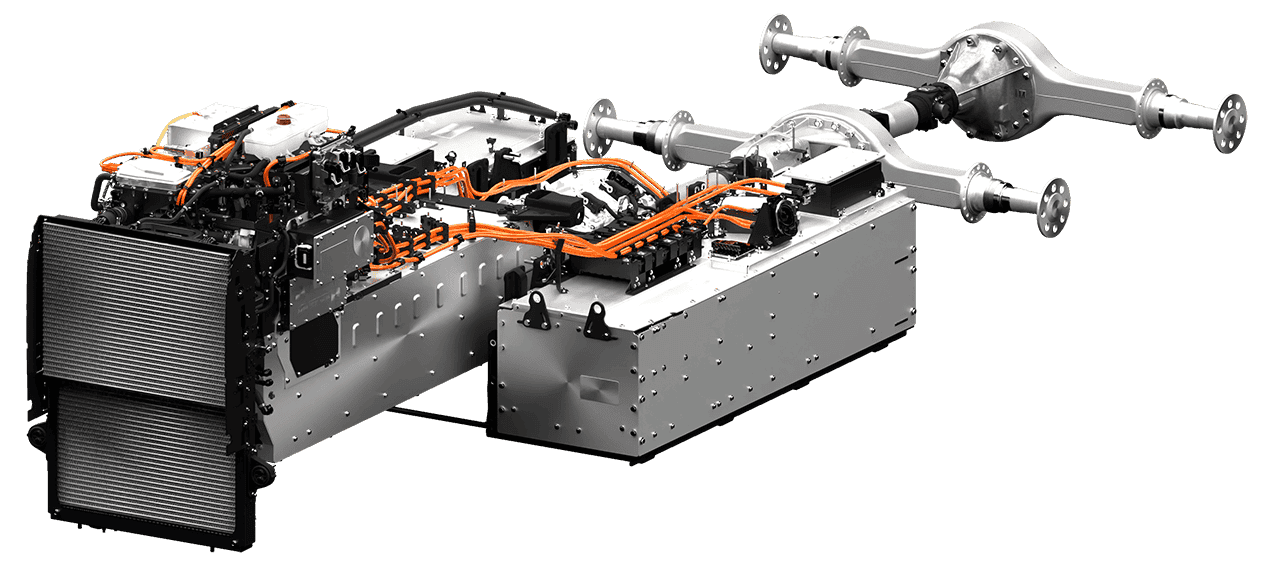

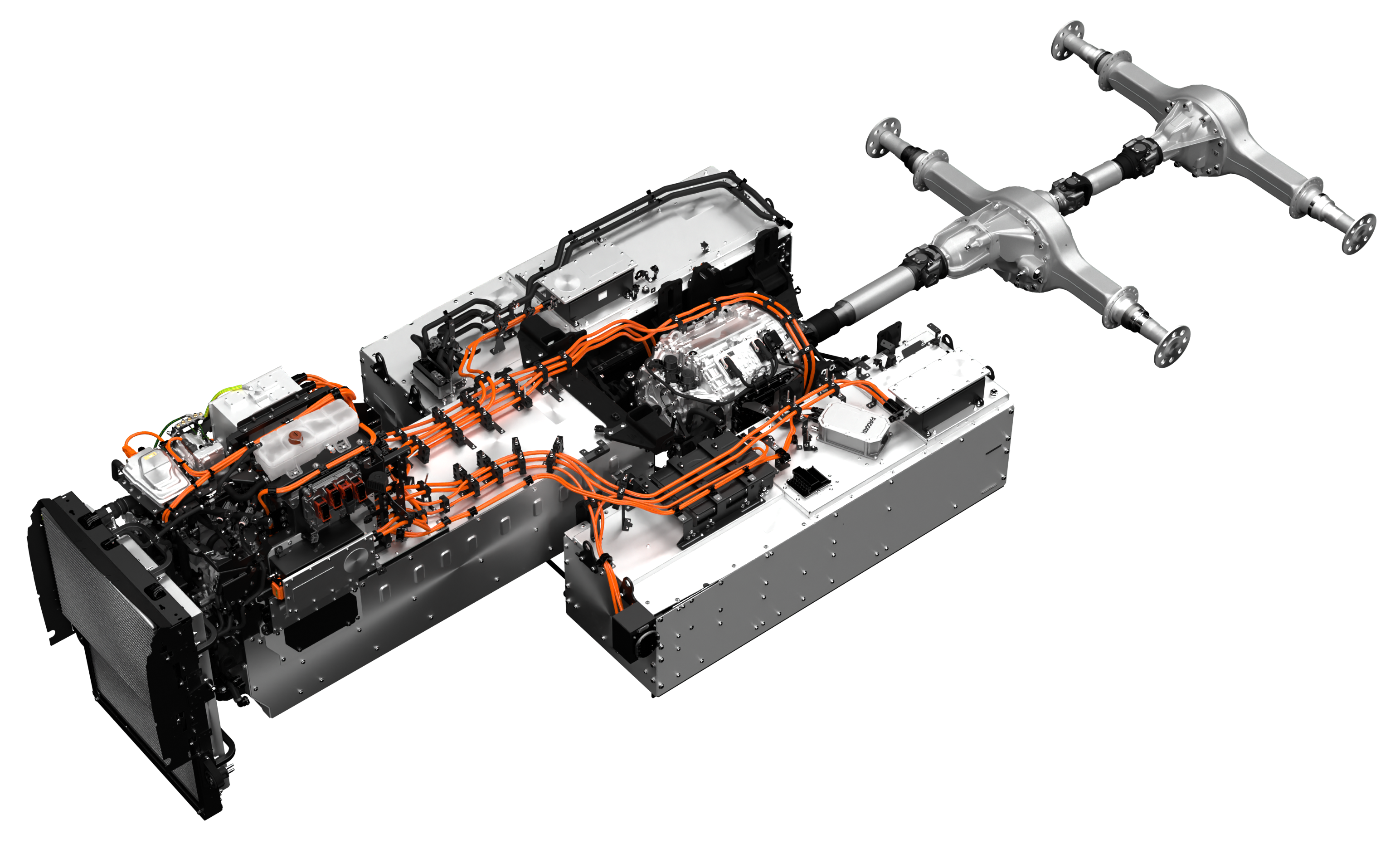

State-of-the-art electric powertrain

The PACCAR electric powertrain provides excellent performance with an integrated 3-speed transmission with a central drive eMotor. To perfectly tailor the ePowertrain to your needs and application, a full range of battery packs is available, resulting in ranges of up to 250 miles on a single charge.

Resources

Spec Sheets

SPEC SHEET - ENGLISH
SPEC SHEET - FRENCH

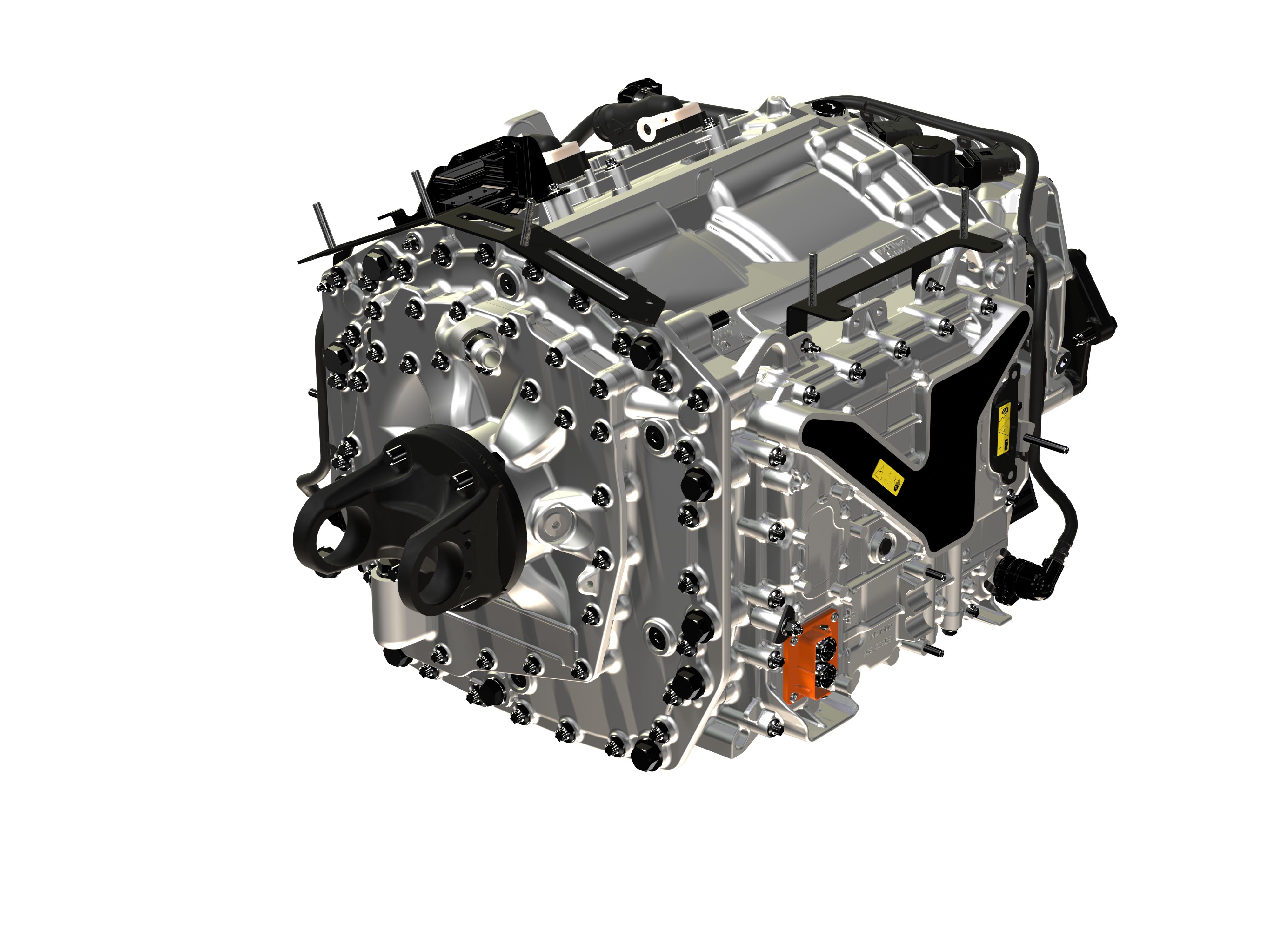

Integrated 3-speed transmission with central drive eMotor

• Seamless shifts with no torque interruption
• Three power variants to meet customer power and range requirements

Strong regenerative braking to replace engine braking

• eMotor regen optimized for maximizing range

Extended service interval across entire driveline

• Fewer moving components, fewer serviceable items

Powertrain performance

• Driveline efficiency with eMotor integrated with transmission and PACCAR rear axles

ePTO (customer installed)

• Supports up to 130HP (100kW)
• Speed controls via dash switches
• High and Low Voltage ports

SPECIFICATIONS

CONFIGURATION

6x4

GCWR

82,000 LBS

GEARBOX

3-SPEED (10.0 | 7.92 | 3.25)

EMOTOR WEIGHT

847 LBS

SYSTEM VOLTAGE

650V

CURRENT AC

520 A (PEAK) / 350A (CONT.)

POWER (Cont./30min)	POWER (Peak./30sec)	TORQUE (Peak./30sec)	BATTERY PACKS
365HP (270kW)	470HP (350kW)	1850LB.-FT.	2 to 5
415HP (310kW)	540HP (400kW)	1850LB.-FT.	3 to 5
470HP (350kW)	605HP (450kW)	1850LB.-FT.	3 to 5

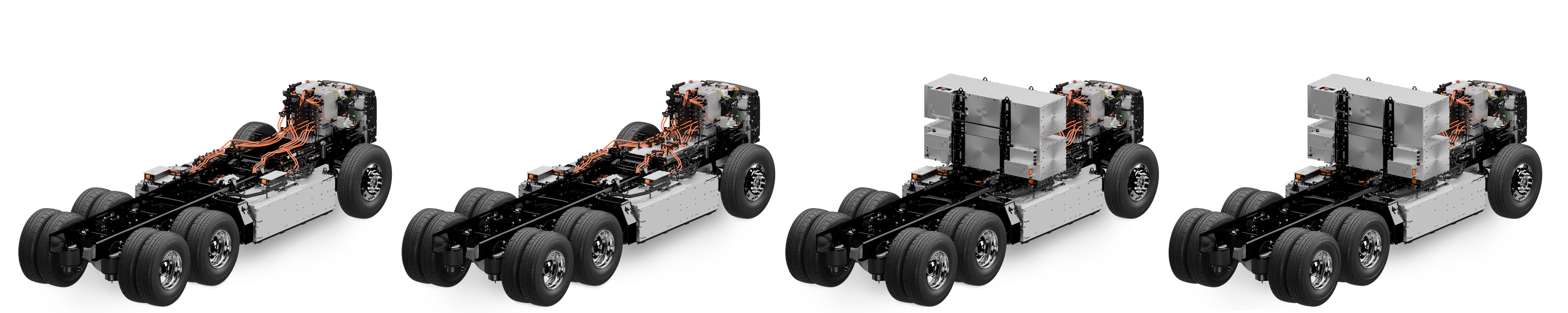

BATTERY CONFIGURATIONS

Pack Configuration	Capacity (kWh)	Range Est. (MI)
2	250	100
3	375	150
4	500	200
5	625	250
2 pack configuration only available with 365 HP rating

_{Disclaimer: Actual range depends on geography, climate, and operator behavior}

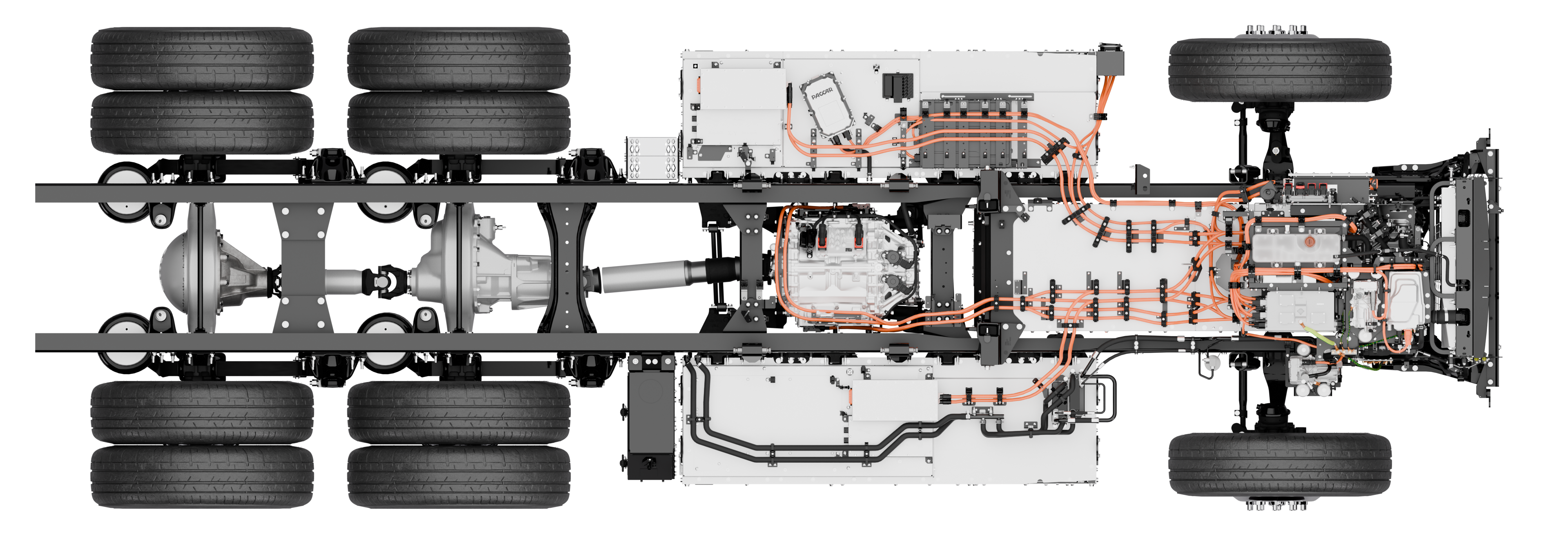

Flexible Options:

Modular battery packs mean more flexibility in wheelbase configurations, weight distribution, and body building.

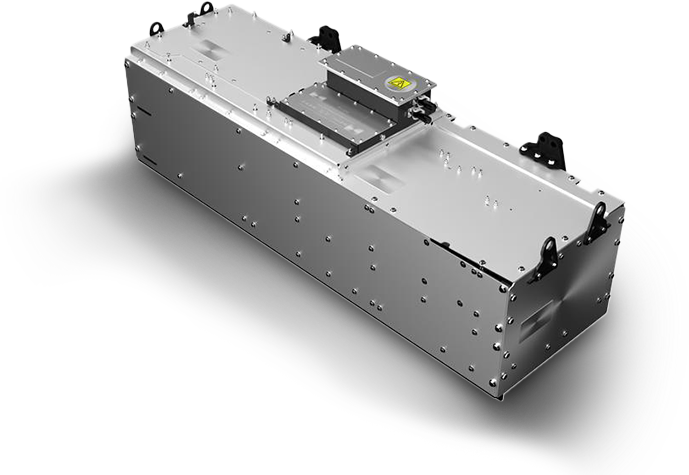

DURABLE BATTERY TECHNOLOGY

PACCAR is adopting LFP (lithium iron phosphate) battery technology to deliver optimal battery performance for durability and range. LFP batteries have excellent thermal and chemical stability and a long life cycle. These attributes make LFP the optimal balance of performance, safety, and service life.

See the Next Generation in Zero Emission Powertrains

Heavy Duty Warranty

Electric Drive System ¹	Standard	36	300,000 MI
Electric Drive System ¹	Extended	60	500,000 MI
Battery	Standard	96	500,000 MI

_{1. eMotor, eAccessories, eControls, ePowertrain Related Components}
